Be sure to set the Default Mark Options for your organization before using this guide. The rules created in this guide will override the default options based on the criteria you choose, but in many cases the default options may be sufficient for your needs.
Prerequisites
EchoMark should already be set up and connected to your Exchange instance. Your initial mail rule will route mail through EchoMark You can layer in more mail flow rules to set marking options based on message sender, receiver, or other message content. You'll need to be an Exchange Administrator in order to access and update mail flow rules.
Step 1: Navigate to the Exchange Admin Center
Access Exchange's mail flow rules at the following link: https://admin.exchange.microsoft.com/#/transportrules
Step 2: Create a new rule

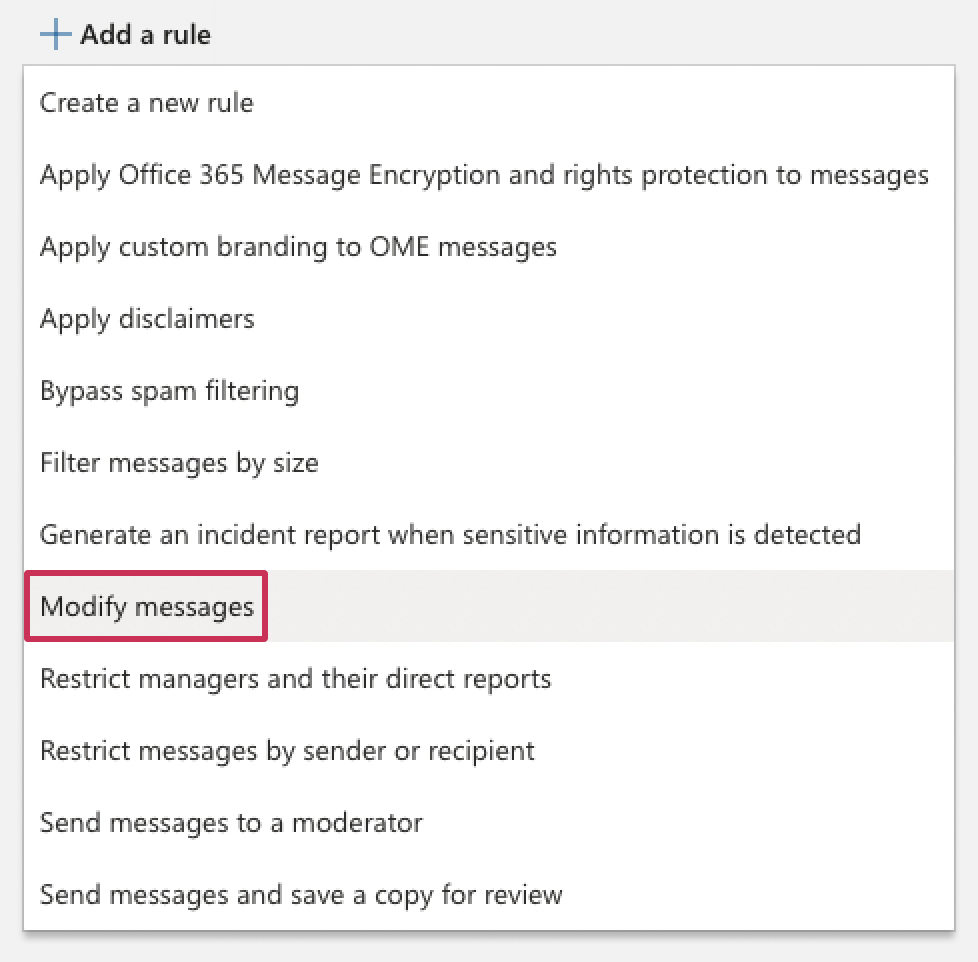

Select the "Add a rule" menu item, located the "Rules" heading of the page linked above, then choose "Modify messages" from the dropdown menu that appears.
Step 3: Set rule conditions

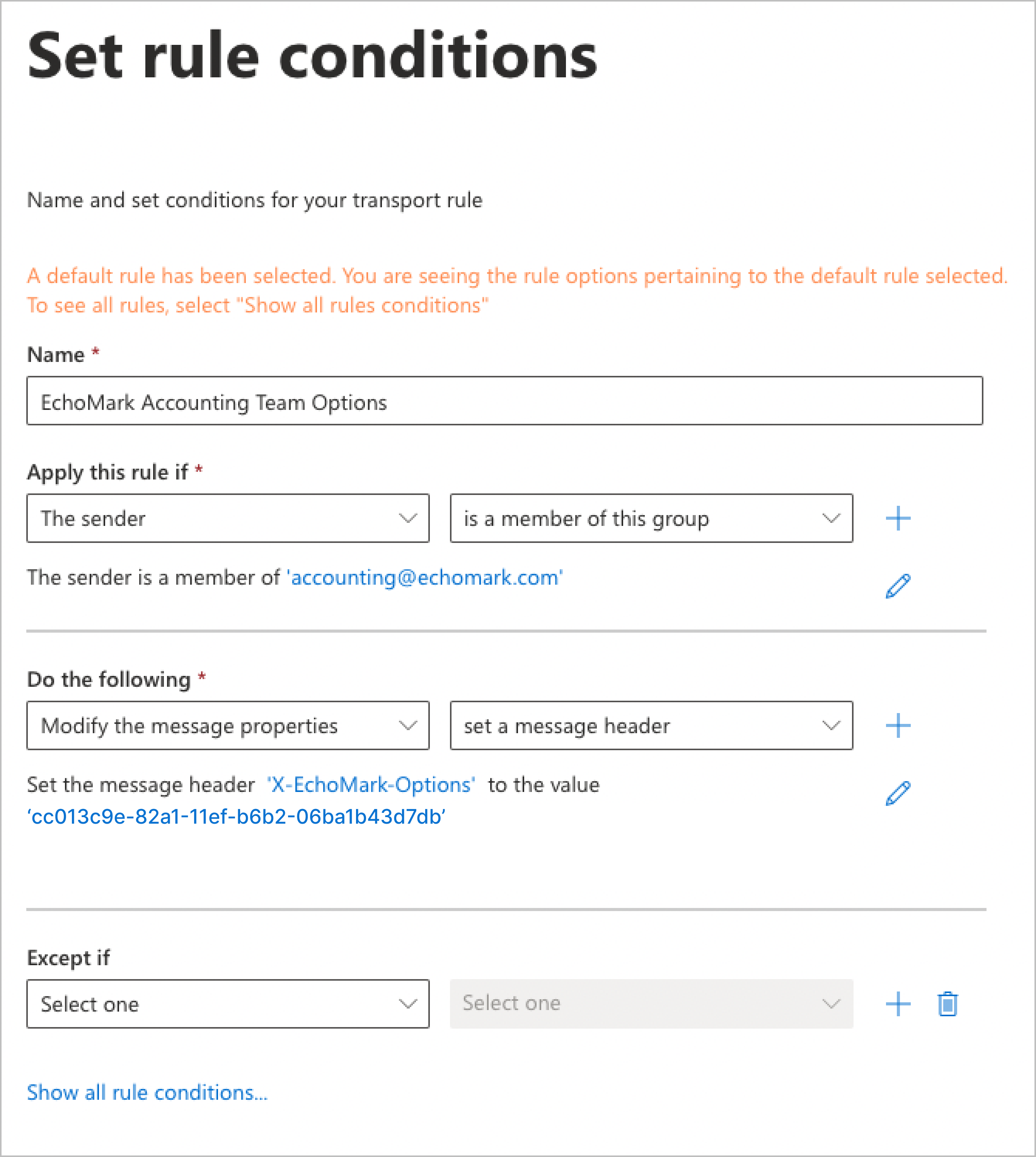

Set the rule conditions based on your organization's needs. In the example shown below, the rule is applied when the sender is part of the Accounting group; it turns the attachment footnote off and customizes the email footnote message.
Under "do the following," you'll want to choose "Modify the message properties," and "set a message header." Type in "X-EchoMark-Options" for the message header, and then add whatever parameters you want to customize with this rule (see parameter options in the table below).
| Mark Type | Parameter names | Possible values |
| Invisible watermark | email-watermark | true/false |
| attachment-watermark | true/false | |
| Footnote visibility | email-footnote | true/false |
| attachment-footnote | true/false | |
| Footnote format | email-footnote-format | text/html |
| Footnote message | email-footnote-text | string |
| attachment-footnote-text | string | |
| Convert attachments to SecureView links | email-link-convert-attachment | true/false |
Parameters are listed in the header value us a comma-separated list, so if you wanted to turn off the footnote for email and attachments, you'd enter the following:
attachment-footnote:false, email-footnote:false
Step 4: Save the rule
You can optionally set an enforcement policy for the rule, or simply leave the default settings, then save the rule.
Step 5: Order the rule appropriately
Only one X-EchoMark-Options header can only be applied per message, which means that a message that meets criteria for multiple mail flow rules that set the X-EchoMark-Options header will get the options that are applied via the last rule before it is routed through EchoMark. So you'll want to order this rule in the mail flow rules list to apply the header at the appropriate part of the flow. Usually, the top of the list is fine.
Step 6: Wait
It usually takes at least a half hour for the mail flow rule to activate in Exchange. Once it does, your mark options should start to take effect.
